Netlink Attributes Construction/Parsing Interface. More...

Data Structures
struct	nla_policy
	Attribute validation policy. More...

Attribute Size Calculation
int	nla_attr_size (int payload)
	Return size of attribute whithout padding. More...

int	nla_total_size (int payload)
	Return size of attribute including padding. More...

int	nla_padlen (int payload)
	Return length of padding at the tail of the attribute. More...

Parsing Attributes
int	nla_type (const struct nlattr *nla)
	Return type of the attribute. More...

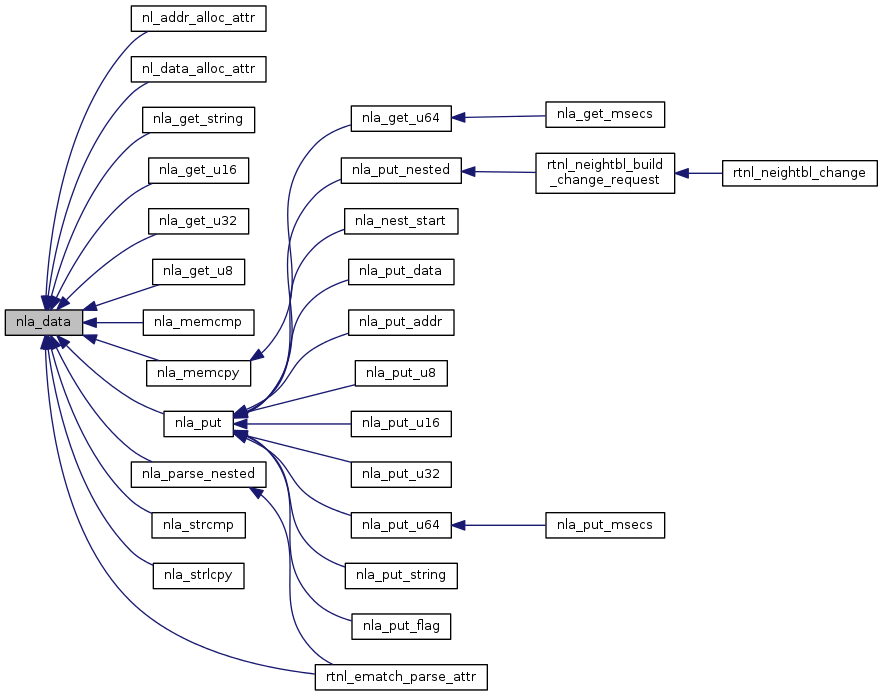

void *	nla_data (const struct nlattr *nla)
	Return pointer to the payload section. More...

int	nla_len (const struct nlattr *nla)
	Return length of the payload . More...

int	nla_ok (const struct nlattr *nla, int remaining)
	Check if the attribute header and payload can be accessed safely. More...

struct nlattr *	nla_next (const struct nlattr nla, int remaining)
	Return next attribute in a stream of attributes. More...

int	nla_parse (struct nlattr tb[], int maxtype, struct nlattr head, int len, struct nla_policy *policy)
	Create attribute index based on a stream of attributes. More...

int	nla_validate (struct nlattr head, int len, int maxtype, struct nla_policy policy)
	Validate a stream of attributes. More...

struct nlattr *	nla_find (struct nlattr *head, int len, int attrtype)
	Find a single attribute in a stream of attributes. More...

Helper Functions
int	nla_memcpy (void dest, struct nlattr src, int count)
	Copy attribute payload to another memory area. More...

size_t	nla_strlcpy (char dst, const struct nlattr nla, size_t dstsize)
	Copy string attribute payload to a buffer. More...

int	nla_memcmp (const struct nlattr nla, const void data, size_t size)
	Compare attribute payload with memory area. More...

int	nla_strcmp (const struct nlattr nla, const char str)
	Compare string attribute payload with string. More...

Unspecific Attribute
struct nlattr *	nla_reserve (struct nl_msg *msg, int attrtype, int attrlen)
	Reserve space for a attribute. More...

int	nla_put (struct nl_msg msg, int attrtype, int datalen, const void data)
	Add a unspecific attribute to netlink message. More...

int	nla_put_data (struct nl_msg msg, int attrtype, struct nl_data data)
	Add abstract data as unspecific attribute to netlink message. More...

int	nla_put_addr (struct nl_msg msg, int attrtype, struct nl_addr addr)
	Add abstract address as unspecific attribute to netlink message. More...

Integer Attributes
int	nla_put_u8 (struct nl_msg *msg, int attrtype, uint8_t value)
	Add 8 bit integer attribute to netlink message. More...

uint8_t	nla_get_u8 (struct nlattr *nla)
	Return value of 8 bit integer attribute. More...

int	nla_put_u16 (struct nl_msg *msg, int attrtype, uint16_t value)
	Add 16 bit integer attribute to netlink message. More...

uint16_t	nla_get_u16 (struct nlattr *nla)
	Return payload of 16 bit integer attribute. More...

int	nla_put_u32 (struct nl_msg *msg, int attrtype, uint32_t value)
	Add 32 bit integer attribute to netlink message. More...

uint32_t	nla_get_u32 (struct nlattr *nla)
	Return payload of 32 bit integer attribute. More...

int	nla_put_u64 (struct nl_msg *msg, int attrtype, uint64_t value)
	Add 64 bit integer attribute to netlink message. More...

uint64_t	nla_get_u64 (struct nlattr *nla)
	Return payload of u64 attribute. More...

String Attribute
int	nla_put_string (struct nl_msg msg, int attrtype, const char str)
	Add string attribute to netlink message. More...

char *	nla_get_string (struct nlattr *nla)
	Return payload of string attribute. More...

char *	nla_strdup (struct nlattr *nla)

Flag Attribute
int	nla_put_flag (struct nl_msg *msg, int attrtype)
	Add flag netlink attribute to netlink message. More...

int	nla_get_flag (struct nlattr *nla)
	Return true if flag attribute is set. More...

Microseconds Attribute
int	nla_put_msecs (struct nl_msg *n, int attrtype, unsigned long msecs)
	Add a msecs netlink attribute to a netlink message. More...

unsigned long	nla_get_msecs (struct nlattr *nla)
	Return payload of msecs attribute. More...

Nested Attribute
int	nla_put_nested (struct nl_msg msg, int attrtype, struct nl_msg nested)
	Add nested attributes to netlink message. More...

struct nlattr *	nla_nest_start (struct nl_msg *msg, int attrtype)
	Start a new level of nested attributes. More...

int	nla_nest_end (struct nl_msg msg, struct nlattr start)
	Finalize nesting of attributes. More...

void	nla_nest_cancel (struct nl_msg msg, struct nlattr attr)
	Cancel the addition of a nested attribute. More...

int	nla_parse_nested (struct nlattr tb[], int maxtype, struct nlattr nla, struct nla_policy *policy)
	Create attribute index based on nested attribute. More...

int	nla_is_nested (struct nlattr *attr)
	Return true if attribute has NLA_F_NESTED flag set. More...

Basic Attribute Data Types
enum	{ NLA_UNSPEC, NLA_U8, NLA_U16, NLA_U32, NLA_U64, NLA_STRING, NLA_FLAG, NLA_MSECS, NLA_NESTED, __NLA_TYPE_MAX }
	Basic attribute data types. More...

Attribute Construction (Exception Based)
#define	NLA_PUT(msg, attrtype, attrlen, data)
	Add unspecific attribute to netlink message. More...

#define	NLA_PUT_TYPE(msg, type, attrtype, value)
	Add atomic type attribute to netlink message. More...

#define	NLA_PUT_U8(msg, attrtype, value) NLA_PUT_TYPE(msg, uint8_t, attrtype, value)
	Add 8 bit integer attribute to netlink message. More...

#define	NLA_PUT_U16(msg, attrtype, value) NLA_PUT_TYPE(msg, uint16_t, attrtype, value)
	Add 16 bit integer attribute to netlink message. More...

#define	NLA_PUT_U32(msg, attrtype, value) NLA_PUT_TYPE(msg, uint32_t, attrtype, value)
	Add 32 bit integer attribute to netlink message. More...

#define	NLA_PUT_U64(msg, attrtype, value) NLA_PUT_TYPE(msg, uint64_t, attrtype, value)
	Add 64 bit integer attribute to netlink message. More...

#define	NLA_PUT_STRING(msg, attrtype, value) NLA_PUT(msg, attrtype, strlen(value) + 1, value)
	Add string attribute to netlink message. More...

#define	NLA_PUT_FLAG(msg, attrtype) NLA_PUT(msg, attrtype, 0, NULL)
	Add flag attribute to netlink message. More...

#define	NLA_PUT_MSECS(msg, attrtype, msecs) NLA_PUT_U64(msg, attrtype, msecs)
	Add msecs attribute to netlink message. More...

#define	NLA_PUT_ADDR(msg, attrtype, addr)
	Add address attribute to netlink message. More...

#define	NLA_PUT_DATA(msg, attrtype, data)
	Add abstract data attribute to netlink message. More...

Iterators
#define	nla_for_each_attr(pos, head, len, rem)
	Iterate over a stream of attributes. More...

#define	nla_for_each_nested(pos, nla, rem)
	Iterate over a stream of nested attributes. More...

Detailed Description

Netlink Attributes Construction/Parsing Interface.

Related sections in the development guide:

Netlink Attributes (Netlink Core Library Development Guide)

Header

#include <netlink/attr.h>

Macro Definition Documentation

#define NLA_PUT	(	msg,
		attrtype,
		attrlen,
		data
	)

Value:

do { \
                if (nla_put(msg, attrtype, attrlen, data) < 0) \
                        goto nla_put_failure; \
        } while(0)

Add unspecific attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
attrlen	Length of attribute payload.
data	Head of attribute payload.

Definition at line 145 of file attr.h.

#define NLA_PUT_TYPE	(	msg,
		type,
		attrtype,
		value
	)

Value:

do { \
                type __tmp = value; \
                NLA_PUT(msg, attrtype, sizeof(type), &__tmp); \
        } while(0)

Add atomic type attribute to netlink message.

Parameters

msg	Netlink message.
type	Atomic type.
attrtype	Attribute type.
value	Head of attribute payload.

Definition at line 159 of file attr.h.

#define nla_for_each_attr	(	pos,
		head,
		len,
		rem
	)

Value:

for (pos = head, rem = len; \
             nla_ok(pos, rem); \
             pos = nla_next(pos, &(rem)))

Iterate over a stream of attributes.

Parameters

pos	loop counter, set to current attribute
head	head of attribute stream
len	length of attribute stream
rem	initialized to len, holds bytes currently remaining in stream

Definition at line 262 of file attr.h.

Referenced by nla_find(), nla_parse(), and nla_validate().

#define nla_for_each_nested	(	pos,
		nla,
		rem
	)

Value:

for (pos = nla_data(nla), rem = nla_len(nla); \
             nla_ok(pos, rem); \
             pos = nla_next(pos, &(rem)))

Iterate over a stream of nested attributes.

Parameters

pos	loop counter, set to current attribute
nla	attribute containing the nested attributes
rem	initialized to len, holds bytes currently remaining in stream

Definition at line 274 of file attr.h.

Referenced by rtnl_ematch_parse_attr().

#define NLA_PUT_U8	(	msg,
		attrtype,
		value
	)	NLA_PUT_TYPE(msg, uint8_t, attrtype, value)

Add 8 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value.

Definition at line 171 of file attr.h.

#define NLA_PUT_U16	(	msg,
		attrtype,
		value
	)	NLA_PUT_TYPE(msg, uint16_t, attrtype, value)

Add 16 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value.

Definition at line 180 of file attr.h.

#define NLA_PUT_U32	(	msg,
		attrtype,
		value
	)	NLA_PUT_TYPE(msg, uint32_t, attrtype, value)

Add 32 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value.

Definition at line 189 of file attr.h.

Referenced by rtnl_neightbl_build_change_request().

#define NLA_PUT_U64	(	msg,
		attrtype,
		value
	)	NLA_PUT_TYPE(msg, uint64_t, attrtype, value)

Add 64 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value.

Definition at line 198 of file attr.h.

Referenced by rtnl_neightbl_build_change_request().

#define NLA_PUT_STRING	(	msg,
		attrtype,
		value
	)	NLA_PUT(msg, attrtype, strlen(value) + 1, value)

Add string attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	NUL terminated character string.

Definition at line 207 of file attr.h.

Referenced by rtnl_link_build_delete_request(), rtnl_link_build_get_request(), rtnl_neightbl_build_change_request(), and rtnl_qdisc_build_delete_request().

#define NLA_PUT_FLAG	(	msg,
		attrtype
	)	NLA_PUT(msg, attrtype, 0, NULL)

Add flag attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.

Definition at line 215 of file attr.h.

#define NLA_PUT_MSECS	(	msg,
		attrtype,
		msecs
	)	NLA_PUT_U64(msg, attrtype, msecs)

Add msecs attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
msecs	Numeric value in micro seconds.

Definition at line 224 of file attr.h.

#define NLA_PUT_ADDR	(	msg,
		attrtype,
		addr
	)

Value:

NLA_PUT(msg, attrtype, nl_addr_get_len(addr), \

nl_addr_get_binary_addr(addr))

Add address attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
addr	Abstract address object.

Definition at line 233 of file attr.h.

#define NLA_PUT_DATA	(	msg,
		attrtype,
		data
	)

Value:

NLA_PUT(msg, attrtype, nl_data_get_size(data), \

nl_data_get(data))

Add abstract data attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
data	Abstract data object.

Definition at line 243 of file attr.h.

Enumeration Type Documentation

anonymous enum

Basic attribute data types.

See section Attribute Parsing (Netlink Core Library Development Guide) for more details.

Enumerator
NLA_UNSPEC	Unspecified type, binary data chunk.
NLA_U8	8 bit integer
NLA_U16	16 bit integer
NLA_U32	32 bit integer
NLA_U64	64 bit integer
NLA_STRING	NUL terminated character string.
NLA_FLAG	Flag.
NLA_MSECS	Micro seconds (64bit)
NLA_NESTED	Nested attributes.

Definition at line 37 of file attr.h.

Function Documentation

int nla_attr_size ( int payload )

Return size of attribute whithout padding.

Parameters

payload Payload length of attribute.

 <-------- nla_attr_size(payload) --------->
+------------------+- - -+- - - - - - - - - +- - -+
| Attribute Header | Pad |     Payload      | Pad |
+------------------+- - -+- - - - - - - - - +- - -+

Returns: Size of attribute in bytes without padding.

Definition at line 55 of file attr.c.

Referenced by nla_padlen(), nla_reserve(), and nla_total_size().

Here is the caller graph for this function:

int nla_total_size ( int payload )

Return size of attribute including padding.

Parameters

payload Payload length of attribute.

 <----------- nla_total_size(payload) ----------->
+------------------+- - -+- - - - - - - - - +- - -+
| Attribute Header | Pad |     Payload      | Pad |
+------------------+- - -+- - - - - - - - - +- - -+

Returns: Size of attribute in bytes.

Definition at line 73 of file attr.c.

References nla_attr_size().

Referenced by nla_padlen(), nla_reserve(), and rtnl_ematch_parse_attr().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_padlen ( int payload )

Return length of padding at the tail of the attribute.

Parameters

payload Payload length of attribute.

+------------------+- - -+- - - - - - - - - +- - -+
| Attribute Header | Pad |     Payload      | Pad |
+------------------+- - -+- - - - - - - - - +- - -+
                                             <--->

Returns: Length of padding in bytes.

Definition at line 91 of file attr.c.

References nla_attr_size(), and nla_total_size().

Referenced by nla_reserve().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_type ( const struct nlattr * nla )

Return type of the attribute.

Parameters

nla	Attribute.

Returns: Type of attribute.

Definition at line 109 of file attr.c.

Referenced by nla_find(), and nla_parse().

Here is the caller graph for this function:

void* nla_data ( const struct nlattr * nla )

Return pointer to the payload section.

Parameters

nla	Attribute.

Returns: Pointer to start of payload section.

Definition at line 120 of file attr.c.

Referenced by nl_addr_alloc_attr(), nl_data_alloc_attr(), nla_get_string(), nla_get_u16(), nla_get_u32(), nla_get_u8(), nla_memcmp(), nla_memcpy(), nla_parse_nested(), nla_put(), nla_strcmp(), nla_strlcpy(), and rtnl_ematch_parse_attr().

Here is the caller graph for this function:

int nla_len ( const struct nlattr * nla )

Return length of the payload .

Parameters

nla Attribute

Returns: Length of payload in bytes.

Definition at line 131 of file attr.c.

Referenced by nl_addr_alloc_attr(), nl_data_alloc_attr(), nla_memcmp(), nla_memcpy(), nla_parse_nested(), nla_strcmp(), nla_strlcpy(), and rtnl_ematch_parse_attr().

Here is the caller graph for this function:

int nla_ok	(	const struct nlattr *	nla,
		int	remaining
	)

Check if the attribute header and payload can be accessed safely.

Parameters

nla	Attribute of any kind.
remaining	Number of bytes remaining in attribute stream.

Verifies that the header and payload do not exceed the number of bytes left in the attribute stream. This function must be called before access the attribute header or payload when iterating over the attribute stream using nla_next().

Returns: True if the attribute can be accessed safely, false otherwise.

Definition at line 148 of file attr.c.

struct nlattr* nla_next	(	const struct nlattr *	nla,
		int *	remaining
	)

read

Return next attribute in a stream of attributes.

Parameters

nla	Attribute of any kind.
remaining	Variable to count remaining bytes in stream.

Calculates the offset to the next attribute based on the attribute given. The attribute provided is assumed to be accessible, the caller is responsible to use nla_ok() beforehand. The offset (length of specified attribute including padding) is then subtracted from the remaining bytes variable and a pointer to the next attribute is returned.

nla_next() can be called as long as remainig is >0.

Returns: Pointer to next attribute.

Definition at line 171 of file attr.c.

int nla_parse	(	struct nlattr *	tb[],
		int	maxtype,
		struct nlattr *	head,
		int	len,
		struct nla_policy *	policy
	)

Create attribute index based on a stream of attributes.

Parameters

tb	Index array to be filled (maxtype+1 elements).
maxtype	Maximum attribute type expected and accepted.
head	Head of attribute stream.
len	Length of attribute stream.
policy	Attribute validation policy.

Iterates over the stream of attributes and stores a pointer to each attribute in the index array using the attribute type as index to the array. Attribute with a type greater than the maximum type specified will be silently ignored in order to maintain backwards compatibility. If policy is not NULL, the attribute will be validated using the specified policy.

See Also: nla_validate

Returns: 0 on success or a negative error code.

Definition at line 242 of file attr.c.

References nla_for_each_attr, and nla_type().

Referenced by genlmsg_parse(), nla_parse_nested(), and nlmsg_parse().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_validate	(	struct nlattr *	head,
		int	len,
		int	maxtype,
		struct nla_policy *	policy
	)

Validate a stream of attributes.

Parameters

head	Head of attributes stream.
len	Length of attributes stream.
maxtype	Maximum attribute type expected and accepted.
policy	Validation policy.

Iterates over the stream of attributes and validates each attribute one by one using the specified policy. Attributes with a type greater than the maximum type specified will be silently ignored in order to maintain backwards compatibility.

See section Attribute Parsing (Netlink Core Library Development Guide) for more details.

Returns: 0 on success or a negative error code.

Definition at line 294 of file attr.c.

References nla_for_each_attr.

Referenced by genlmsg_validate(), and nlmsg_validate().

Here is the caller graph for this function:

struct nlattr* nla_find	(	struct nlattr *	head,
		int	len,
		int	attrtype
	)

read

Find a single attribute in a stream of attributes.

Parameters

head	Head of attributes stream.
len	Length of attributes stream.
attrtype	Attribute type to look for.

Iterates over the stream of attributes and compares each type with the type specified. Returns the first attribute which matches the type.

Returns: Pointer to attribute found or NULL.

Definition at line 323 of file attr.c.

References nla_for_each_attr, and nla_type().

Referenced by nlmsg_find_attr().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_memcpy	(	void *	dest,
		struct nlattr *	src,
		int	count
	)

Copy attribute payload to another memory area.

Parameters

dest	Pointer to destination memory area.
src	Attribute
count	Number of bytes to copy at most.

Note: The number of bytes copied is limited by the length of the attribute payload.

Returns: The number of bytes copied to dest.

Definition at line 353 of file attr.c.

References nla_data(), and nla_len().

Referenced by nla_get_u64().

Here is the call graph for this function:

Here is the caller graph for this function:

size_t nla_strlcpy	(	char *	dst,
		const struct nlattr *	nla,
		size_t	dstsize
	)

Copy string attribute payload to a buffer.

Parameters

dst	Pointer to destination buffer.
nla	Attribute of type NLA_STRING.
dstsize	Size of destination buffer in bytes.

Copies at most dstsize - 1 bytes to the destination buffer. The result is always a valid NUL terminated string. Unlike strlcpy the destination buffer is always padded out.

Returns: The length of string attribute without the terminating NUL.

Definition at line 378 of file attr.c.

References nla_data(), and nla_len().

Here is the call graph for this function:

int nla_memcmp	(	const struct nlattr *	nla,
		const void *	data,
		size_t	size
	)

Compare attribute payload with memory area.

Parameters

nla	Attribute.
data	Memory area to compare to.
size	Number of bytes to compare.

See Also: memcmp(3)

Returns: An integer less than, equal to, or greater than zero.

Definition at line 405 of file attr.c.

References nla_data(), and nla_len().

Here is the call graph for this function:

int nla_strcmp	(	const struct nlattr *	nla,
		const char *	str
	)

Compare string attribute payload with string.

Parameters

nla	Attribute of type NLA_STRING.
str	NUL terminated string.

See Also: strcmp(3)

Returns: An integer less than, equal to, or greater than zero.

Definition at line 423 of file attr.c.

References nla_data(), and nla_len().

Here is the call graph for this function:

struct nlattr* nla_reserve	(	struct nl_msg *	msg,
		int	attrtype,
		int	attrlen
	)

read

Reserve space for a attribute.

Parameters

msg	Netlink Message.
attrtype	Attribute Type.
attrlen	Length of payload.

Reserves room for a attribute in the specified netlink message and fills in the attribute header (type, length). Returns NULL if there is unsuficient space for the attribute.

Any padding between payload and the start of the next attribute is zeroed out.

Returns: Pointer to start of attribute or NULL on failure.

Definition at line 456 of file attr.c.

References nla_attr_size(), nla_padlen(), nla_total_size(), and nlmsg_data().

Referenced by nla_put().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_put	(	struct nl_msg *	msg,
		int	attrtype,
		int	datalen,
		const void *	data
	)

Add a unspecific attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
datalen	Length of data to be used as payload.
data	Pointer to data to be used as attribute payload.

Reserves room for a unspecific attribute and copies the provided data into the message as payload of the attribute. Returns an error if there is insufficient space for the attribute.

See Also: nla_reserve

Returns: 0 on success or a negative error code.

Definition at line 497 of file attr.c.

References nla_data(), nla_reserve(), and nlmsg_data().

Referenced by nla_nest_start(), nla_put_addr(), nla_put_data(), nla_put_flag(), nla_put_nested(), nla_put_string(), nla_put_u16(), nla_put_u32(), nla_put_u64(), and nla_put_u8().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_put_data	(	struct nl_msg *	msg,
		int	attrtype,
		struct nl_data *	data
	)

Add abstract data as unspecific attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
data	Abstract data object.

Equivalent to nla_put() except that the length of the payload is derived from the abstract data object.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 527 of file attr.c.

References nl_data_get(), nl_data_get_size(), and nla_put().

Here is the call graph for this function:

int nla_put_addr	(	struct nl_msg *	msg,
		int	attrtype,
		struct nl_addr *	addr
	)

Add abstract address as unspecific attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
addr	Abstract address object.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 542 of file attr.c.

References nl_addr_get_binary_addr(), nl_addr_get_len(), and nla_put().

Here is the call graph for this function:

int nla_put_u8	(	struct nl_msg *	msg,
		int	attrtype,
		uint8_t	value
	)

Add 8 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value to store as payload.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 563 of file attr.c.

References nla_put().

Here is the call graph for this function:

uint8_t nla_get_u8 ( struct nlattr * nla )

Return value of 8 bit integer attribute.

Parameters

nla	8 bit integer attribute

Returns: Payload as 8 bit integer.

Definition at line 574 of file attr.c.

References nla_data().

Here is the call graph for this function:

int nla_put_u16	(	struct nl_msg *	msg,
		int	attrtype,
		uint16_t	value
	)

Add 16 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value to store as payload.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 588 of file attr.c.

References nla_put().

Here is the call graph for this function:

uint16_t nla_get_u16 ( struct nlattr * nla )

Return payload of 16 bit integer attribute.

Parameters

nla	16 bit integer attribute

Returns: Payload as 16 bit integer.

Definition at line 599 of file attr.c.

References nla_data().

Here is the call graph for this function:

int nla_put_u32	(	struct nl_msg *	msg,
		int	attrtype,
		uint32_t	value
	)

Add 32 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value to store as payload.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 613 of file attr.c.

References nla_put().

Here is the call graph for this function:

uint32_t nla_get_u32 ( struct nlattr * nla )

Return payload of 32 bit integer attribute.

Parameters

nla	32 bit integer attribute.

Returns: Payload as 32 bit integer.

Definition at line 624 of file attr.c.

References nla_data().

Here is the call graph for this function:

int nla_put_u64	(	struct nl_msg *	msg,
		int	attrtype,
		uint64_t	value
	)

Add 64 bit integer attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
value	Numeric value to store as payload.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 638 of file attr.c.

References nla_put().

Referenced by nla_put_msecs().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t nla_get_u64 ( struct nlattr * nla )

Return payload of u64 attribute.

Parameters

nla	u64 netlink attribute

Returns: Payload as 64 bit integer.

Definition at line 649 of file attr.c.

References nla_memcpy().

Referenced by nla_get_msecs().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_put_string	(	struct nl_msg *	msg,
		int	attrtype,
		const char *	str
	)

Add string attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
str	NUL terminated string.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 673 of file attr.c.

References nla_put().

Here is the call graph for this function:

char* nla_get_string ( struct nlattr * nla )

Return payload of string attribute.

Parameters

nla	String attribute.

Returns: Pointer to attribute payload.

Definition at line 684 of file attr.c.

References nla_data().

Here is the call graph for this function:

int nla_put_flag	(	struct nl_msg *	msg,
		int	attrtype
	)

Add flag netlink attribute to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 708 of file attr.c.

References nla_put().

Here is the call graph for this function:

int nla_get_flag ( struct nlattr * nla )

Return true if flag attribute is set.

Parameters

nla	Flag netlink attribute.

Returns: True if flag is set, otherwise false.

Definition at line 719 of file attr.c.

int nla_put_msecs	(	struct nl_msg *	n,
		int	attrtype,
		unsigned long	msecs
	)

Add a msecs netlink attribute to a netlink message.

Parameters

n	netlink message
attrtype	attribute type
msecs	number of msecs

Definition at line 736 of file attr.c.

References nla_put_u64().

Here is the call graph for this function:

unsigned long nla_get_msecs ( struct nlattr * nla )

Return payload of msecs attribute.

Parameters

nla	msecs netlink attribute

Returns: the number of milliseconds.

Definition at line 747 of file attr.c.

References nla_get_u64().

Here is the call graph for this function:

int nla_put_nested	(	struct nl_msg *	msg,
		int	attrtype,
		struct nl_msg *	nested
	)

Add nested attributes to netlink message.

Parameters

msg	Netlink message.
attrtype	Attribute type.
nested	Message containing attributes to be nested.

Takes the attributes found in the nested message and appends them to the message msg nested in a container of the type attrtype. The nested message may not have a family specific header.

See Also: nla_put

Returns: 0 on success or a negative error code.

Definition at line 771 of file attr.c.

References nla_put(), nlmsg_data(), and nlmsg_datalen().

Referenced by rtnl_neightbl_build_change_request().

Here is the call graph for this function:

Here is the caller graph for this function:

struct nlattr* nla_nest_start	(	struct nl_msg *	msg,
		int	attrtype
	)

read

Start a new level of nested attributes.

Parameters

msg	Netlink message.
attrtype	Attribute type of container.

Returns: Pointer to container attribute.

Definition at line 788 of file attr.c.

References nla_put().

Here is the call graph for this function:

int nla_nest_end	(	struct nl_msg *	msg,
		struct nlattr *	start
	)

Finalize nesting of attributes.

Parameters

msg	Netlink message.
start	Container attribute as returned from nla_nest_start().

Corrects the container attribute header to include the appeneded attributes.

Returns: 0

Definition at line 810 of file attr.c.

References nla_nest_cancel(), and nlmsg_reserve().

Here is the call graph for this function:

void nla_nest_cancel	(	struct nl_msg *	msg,
		struct nlattr *	attr
	)

Cancel the addition of a nested attribute.

Parameters

msg	Netlink message
attr	Nested netlink attribute

Removes any partially added nested Netlink attribute from the message by resetting the message to the size before the call to nla_nest_start() and by overwriting any potentially touched message segments with 0.

Definition at line 858 of file attr.c.

Referenced by nla_nest_end().

Here is the caller graph for this function:

int nla_parse_nested	(	struct nlattr *	tb[],
		int	maxtype,
		struct nlattr *	nla,
		struct nla_policy *	policy
	)

Create attribute index based on nested attribute.

Parameters

tb	Index array to be filled (maxtype+1 elements).
maxtype	Maximum attribute type expected and accepted.
nla	Nested Attribute.
policy	Attribute validation policy.

Feeds the stream of attributes nested into the specified attribute to nla_parse().

See Also: nla_parse

Returns: 0 on success or a negative error code.

Definition at line 884 of file attr.c.

References nla_data(), nla_len(), and nla_parse().

Referenced by rtnl_ematch_parse_attr().

Here is the call graph for this function:

Here is the caller graph for this function:

int nla_is_nested ( struct nlattr * attr )

Return true if attribute has NLA_F_NESTED flag set.

Parameters

attr	Netlink attribute

Returns: True if attribute has NLA_F_NESTED flag set, oterhwise False.

Definition at line 896 of file attr.c.

Data Structures

Attribute Size Calculation

Parsing Attributes

Helper Functions

Unspecific Attribute

Integer Attributes

String Attribute

Flag Attribute

Microseconds Attribute

Nested Attribute

Basic Attribute Data Types

Attribute Construction (Exception Based)

Iterators

Detailed Description

Header

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation
